Building Redundant Networks That Continue Operating During Failures

Network redundancy does not mean unnecessarily complicating matters or duplicating every device without cause. It involves carefully planning backups, alternative routes, and recovery methods so the network can automatically adapt in the event of a failure. This article explores how redundant networks work, why they are important, which components require protection, and how businesses can build networks that remain operational even during a failure.

Understanding Network Redundancy

Adding backup components or alternative communication methods to a network to ensure the entire system keeps running—even if a single component fails—is known as network resilience. In simple networks, most devices require only one connection to function. For example, a computer might be connected to a switch via a single network cable; if that switch fails, the connection cannot be established. Redundancy eliminates this single point of failure by providing an alternative communication path. The primary goal of redundancy is not to prevent all failures. Hardware wears out over time, network cables can get damaged, and external services can be interrupted. The goal is to minimize disruption caused by outages by keeping the network operational while components are being replaced or maintained.

The Difference Between Reliability and Redundancy

Reliability and redundancy are closely related, but they are not the same concept. Reliability refers to a system’s stability under normal operating conditions. Redundancy refers to the system’s ability to handle unexpected issues. A well-functioning network might feature high-quality hardware and undergo regular maintenance. A redundant network goes a step further by establishing contingency plans in advance for partial network failures. For example, a powerful router might function perfectly, but relying on it exclusively for all transactions still carries risks. If two routers work together, one can take over if the other fails, which reduces risk.

Single Point of Failure (SPOF)

An SPOF is any component of a network that, if it fails, can cause the entire network to stop working. These vulnerabilities are common in networks designed for simplicity rather than continuous availability. Small networks often pay little attention to these risks because even a failure would have a minimal impact. However, as businesses become increasingly dependent on technology, they typically identify and eliminate critical SPOFs. Some common SPOFs include:

• An internet connection
• A network switch
• A device that overloads the network
• A power supply
• The actual cabling between critical nodes
• A server performing critical tasks

Eliminating these vulnerabilities requires careful planning. Adding equipment does not mean existing equipment immediately becomes obsolete. Backup components must also be correctly installed and connected.

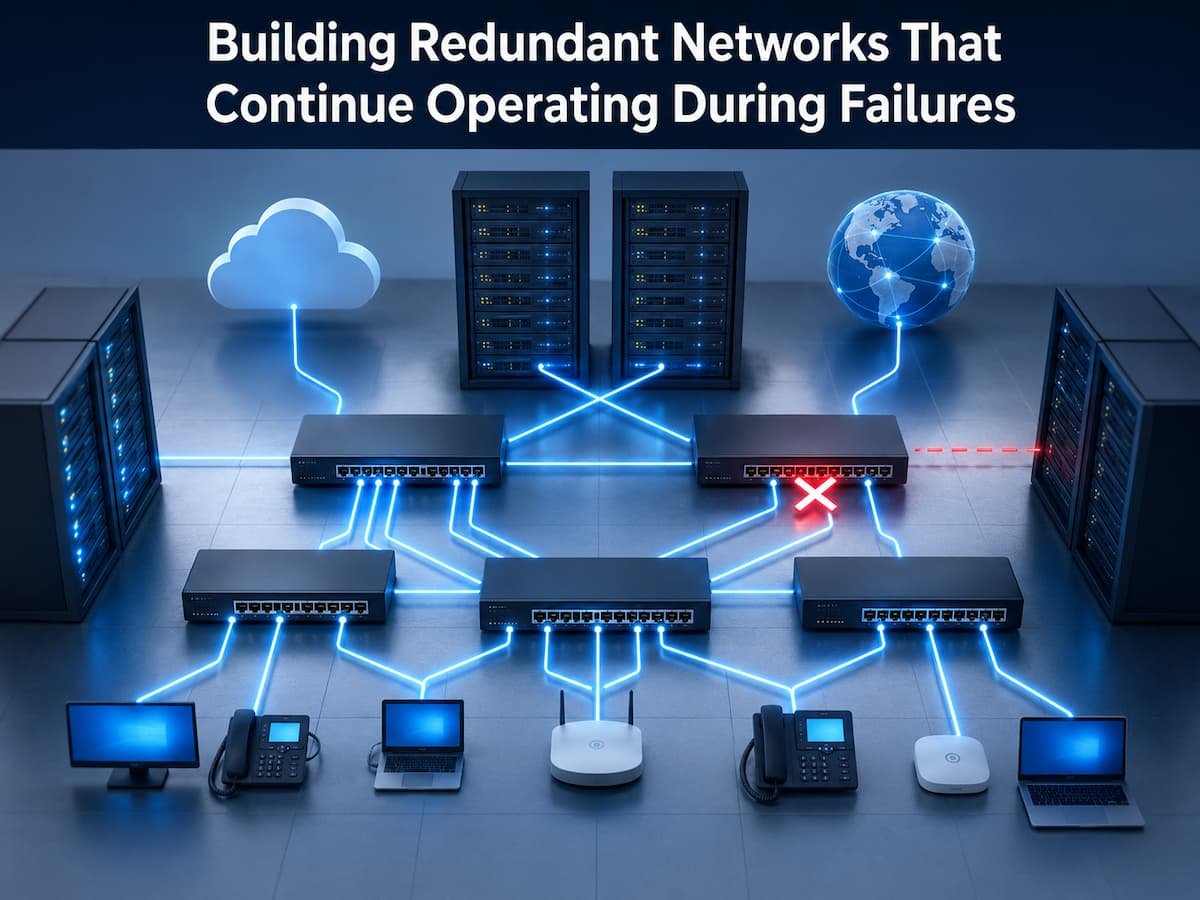

Redundant Network Paths: Keeping Data Moving

Providing multiple paths for data transmission is a core concept of network redundancy. If one path becomes blocked, traffic can be sent via another path. Imagine two buildings connected by a fiber-optic cable; if the cable breaks during construction work, they cannot communicate. A second connection can be added to create a backup path along a different physical route. True security is only achieved if the backup connection can function independently. Similarly, in that same scenario, two lines running through the same underground tunnel could break simultaneously. A robust redundancy design requires attention to both physical isolation and logical design.

Modern networks use routing and switching technologies to identify clear paths and reroute data in the event of a failure. These systems communicate continuously, monitor network status, and adjust connection paths as needed. If a failure occurs, the network can remove a blocked path and utilize an alternative, clear path. The speed of this process depends on the technologies employed and the network architecture.

Backup Switches and Core Network Protection

Network switches are crucial for organizational communication. If a major switch fails, many users may lose access to applications and services. To ensure the reliability of the switching infrastructure, network operators typically closely monitor critical networks. Companies do not rely on a single central switch; instead, they use multiple switches working in tandem. Devices can have multiple connections, ensuring that traffic flow continues even if one switch fails.

A switch failure can affect multiple devices simultaneously. Employees may lose access to shared tools or servers, and inter-departmental communication may be disrupted. Redundant switching mitigates this risk by ensuring that network communication does not rely on a single physical component. However, redundancy requires careful planning. Poorly configured backup connections can lead to network loops, unstable communication, or unexpected traffic issues.

Protect your Internet Connection with Multiple Links

Many teams require internet access for their daily operations. A reliable network connection is crucial for cloud applications, remote work, online services, and customer platforms. Relying on a single internet connection creates a critical dependency; if a service provider experiences an outage or a connection drops, the company may lose access to external services. A redundant network design allows you to use multiple connections—typically from different service providers or via different physical paths. Even if one connection fails, traffic can continue to flow through another.

However, using two connections from the same service provider does not guarantee full resilience. If a service provider outage affects local infrastructure, it could compromise both connections. To enhance availability, companies often consider using different service providers, access methods, or physical entry points into the building.

Power Redundancy: The Foundation of Network Availability

Network equipment requires electricity to operate, which means power problems can become network failures. A perfectly designed network can still stop working if switches, routers, or servers lose power. Power redundancy protects network equipment from electrical interruptions. Organizations commonly use backup power systems that keep equipment running during short outages and provide time for controlled shutdowns during longer failures. Important power protection methods include:

• Uninterruptible power supplies (UPS)
• Backup generators
• Multiple power sources
• Redundant power modules in critical equipment

Designing Redundancy Without Creating Unnecessary Complexity

High Availability and Failover on its Own

A backup network works best when it can fix itself when something goes wrong. High availability is the name for this skill. The network moves processes to a backup system automatically, so it doesn’t have to wait for an administrator to replace a broken part by hand. When one device, connection, or path becomes unavailable, another can take over automatically. This is called automatic failover. Users will have less trouble with this process if it works faster and more accurately. For instance, if the main firewall stops working, the backup firewall can start handling network traffic right away. The transition happens automatically, so users may not notice much or any difference.

There is a limit to how much downtime each app can handle. For sending emails, a small interruption might not matter, but it can really mess up voice calls, online transactions, or industrial systems. A good redundant design takes both availability and repair time into account. It’s possible that a backup system that takes hours to set up won’t protect important activities well enough.

Firewalls and Security Protection that Work Twice

Firewalls keep networks safe by managing the traffic between internal systems and the networks they connect to. If a firewall fails, users may not be able to connect to the internet, cloud services, or remote locations. This is because firewalls are located at key connection points. A lot of the time, organizations use multiple firewalls that work together to provide redundancy. If one firewall stops working, another one can keep controlling network traffic. But security duplication needs to be carefully synchronized. Rules for firewalls, information about connections, and security policies must be the same on all devices. If not, a backup firewall might not work right in a case.

Backups for Data Centers and Important Infrastructure

Because they host applications, databases, and services that many people use, data centers need to be very available. If the network in a data center breaks down, it can affect tens of thousands or even millions of links. Data centers use many levels of duplication to lower these risks. A lot of the time, network connections, switches, power systems, cooling systems, and storage platforms include backup options. The goal is to not rely on a single part over another. If one system breaks, another can keep things running while the first one is fixed.

Multiple Ways to Design a Network

Engineers can make redundant networks in several ways. The choice of method depends on the network’s size, the required uptime, the budget, and the business’s needs. Device Redundancy: Having backup hardware on hand in case important equipment breaks down is what device redundancy means. Back-up routers, switches, firewalls, and wireless controllers are some examples. This method guards against hardware failure, but it needs to be set up correctly so that the backup system can work flawlessly.

Path Redundancy: Path redundancy sets up more than one way for important network areas to talk to each other. Traffic can use a different route if one connection goes down. This is especially important in places where cables could get damaged, like big buildings, campuses, and spread-out settings. Service Redundancy: Having multiple systems that can do the same job as the main system saves important applications. For instance, the same app might be hosted on more than one computer so users can keep working even if one server goes down.

Common Mistakes When Building Redundant Networks

Redundancy improves reliability, but poor planning can reduce its effectiveness. Many network problems happen because backup systems are added without considering the complete design.

• Creating Redundancy With Shared Failures
• Ignoring Configuration Consistency
• Adding Too Much Complexity

Testing and Maintaining Redundant Networks

A redundant network should never be considered complete after installation. Backup systems must be tested regularly because unused equipment can develop problems over time. A backup connection that has never been tested may fail during the exact moment it is needed most.

Important Maintenance Practices

• Regularly test failover procedures
• Monitor device health and performance
• Keep firmware and software updated
• Review network configurations periodically
• Replace aging hardware before failure occurs

Testing should simulate realistic failures. Administrators should understand what happens when a switch, router, power source, or internet connection becomes unavailable.

Monitoring: The Key to Reliable Redundancy

Redundant networks require continuous monitoring because early detection makes problems easier to solve. Network monitoring systems can identify unusual behavior, failing components, and performance issues before they become major outages. Monitoring helps administrators answer important questions:

• Is the backup system ready?
• Are any components showing warning signs?
• Did a failover event happen?
• Is network performance changing over time?

Without monitoring, redundancy can create a false sense of security because hidden problems may remain unnoticed.

The Future of Network Redundancy

As companies use cloud services, allow employees to work from home, connect gadgets, and set up automated systems, networks are getting trickier. Because we count on connectivity more than ever, redundancy is more important than ever.

More and more, modern network designs use automation to find problems and change traffic on their own. Networks can respond faster and better with software-based networking, cloud-based systems, and smart monitoring tools. Adding more backup hardware is not the only way to make redundancy work in the future. It’s about making smart systems that can spot problems, change quickly, and keep offering reliable services.

FAQs

1. What is the main point of having two copies of a network?

Network redundancy’s main goal is to keep services running even if a part fails. Instead of letting a broken device or connection stop contact, designs that are redundant offer backup systems or other paths that keep things running.

2. Does having multiple copies of a network stop all downtime?

No, redundancy can’t completely stop all outages; it can only lessen the damage from many failures. Network availability can still be affected by large-scale events, wrong configurations, software issues, or multiple failures happening at the same time.

3. Do small networks need to have backups?

Not all small networks need advanced resilience. The choice will depend on how important it is to have a working network. While a home network might not mind occasional downtime, a small business that depends on the internet might benefit from having a backup connection.

4. Why should you test systems that are redundant?

Testing has shown that backup systems do work. A lot of failures happen because companies think their redundancy is working without checking the configurations, connections, and failover methods.

5. Can resilience make a network work better?

Redundancy is mostly used to make things available, but it can also sometimes make things run faster. When planned correctly, multiple paths can spread traffic, ease traffic jams, and make better use of resources.

Conclusion

It takes more than just getting more equipment to make a network that keeps running when something goes wrong. Careful planning, getting rid of single points of failure, and making sure there are other ways to communicate are all necessary for redundancy to work. Reliable networks use many ways to keep themselves safe, like backup connections, redundant devices, automatic failover, power protection, and constant tracking. Each layer makes it less likely that one problem will stop important work.

It’s not always true that the most complex networks are the ones that work best. These are the ones that are based on real risks and the needs of the business. Organizations can build networks that work even when problems arise out of the blue by figuring out where failures might happen and planning workable alternatives.
